UNDER MANHOLE ANTI ODOUR FILTERS

Elimination of odour inconveniences from sewage manholes, expansion wells, septic tanks, settling tanks, separators, etc.

Filtr powłazowy
Home page 9 Offer 9 Under Manhole Anti Odour Filters

In sewage systems, sewage transport, and storage, the main factors generating unpleasant odours are addressed by our under manhole anti odour filters. Specifically designed for manholes, closed tanks, sewage pumping stations, etc., these filters effectively eliminate odour compounds.

Specially selected filter inserts efficiently purify the air from hydrogen sulfide, ammonia, mercaptans, and other unpleasant-smelling substances. The filters’ effectiveness is confirmed by independent, certified tests, reaching >97%. The replaceable filter inserts make the device economically viable even over extended periods of use.

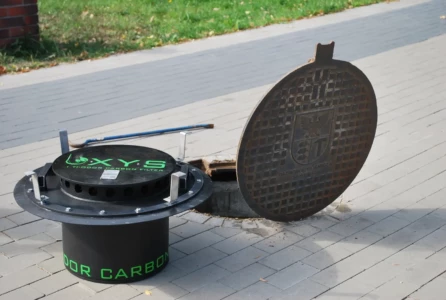

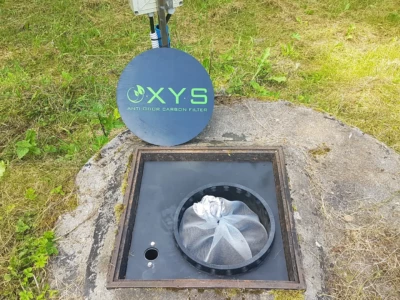

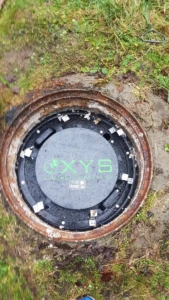

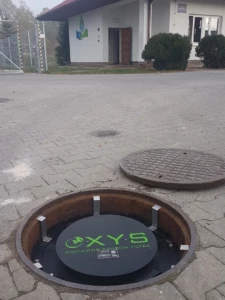

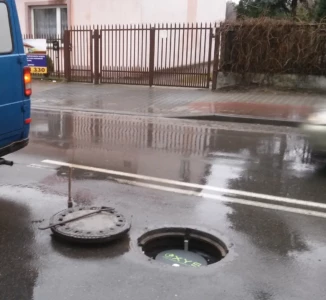

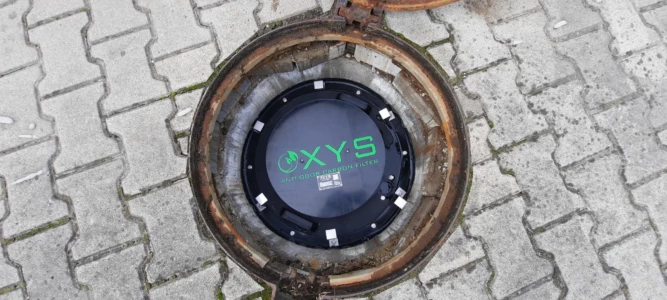

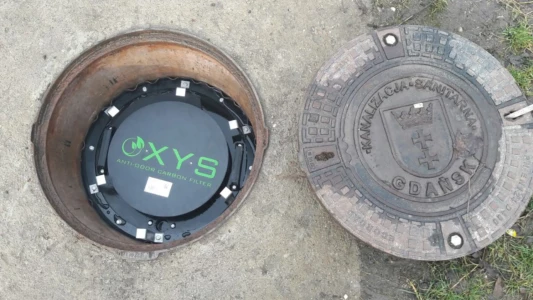

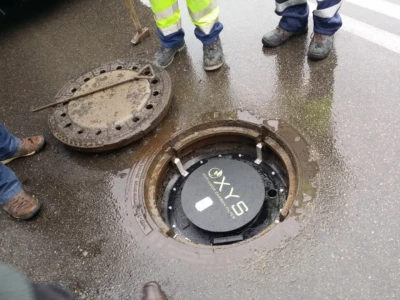

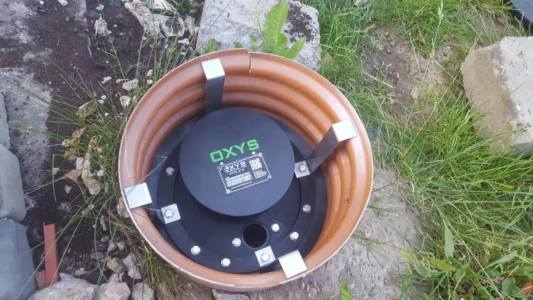

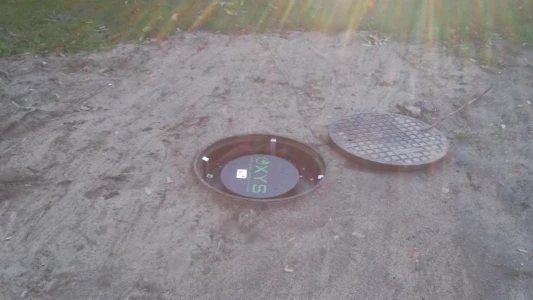

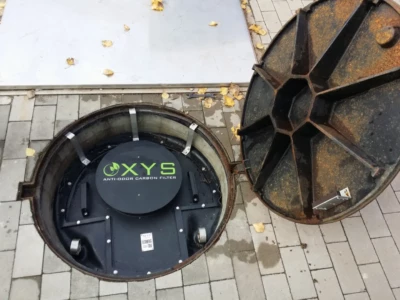

Under manhole anti odour filters are installed directly under the manhole cover of the sanitary chamber. After removing the cover, simply place the filter on the main frame circumference of the manhole. A rubber seal automatically seals the space between the filter housing and the manhole wall, eliminating the need for additional sealing work.

filtry komorowe oxys wroclaw
filtr podwłazowy

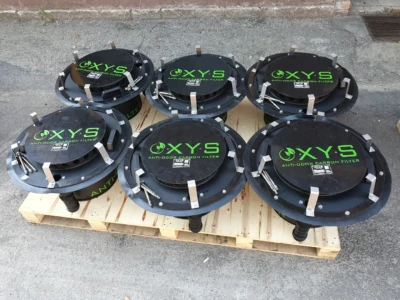

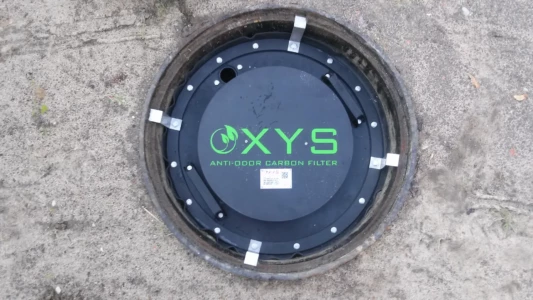

Each filter comes equipped with mounting handles to secure it to the manhole frame.

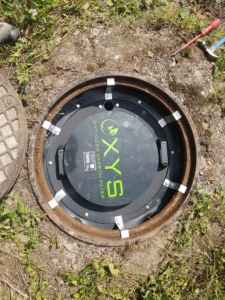

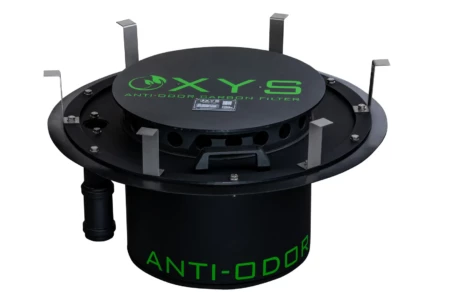

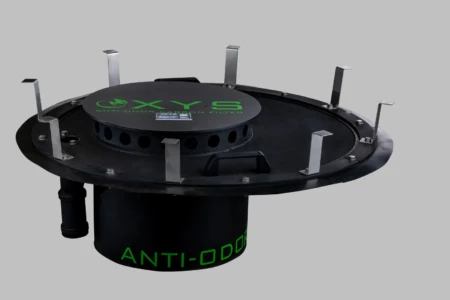

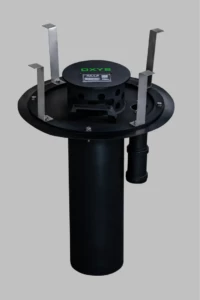

Round Under Manhole Filters

separator
OXYS 315 średnica otworu montażowego:
315 mm		 Length of the filtration chamber:
500 mm		 Weight of the filtering medium:
4,4 kg
OXYS 400 średnica otworu montażowego:
400 mm		 Length of the filtration chamber:
500 mm		 Weight of the filtering medium:
5,3 kg
OXYS 600 średnica otworu montażowego:
600 mm		 Length of the filtration chamber:
340 mm		 Weight of the filtering medium:
10,5 kg
OXYS 800 średnica otworu montażowego:
800 mm		 Length of the filtration chamber:
340 mm		 Weight of the filtering medium:
10,5 kg
filtr powłazowy


Parametr OXYS 315 OXYS 400 OXYS 600 OXYS 800
Mounting hole diameter 315 mm 400 mm 600 mm 800 mm
Length of the filtration chamber 500 mm 500 mm 340 mm 340 mm
Weight of the filtering medium 4,4 kg 5,3 kg 10,5 kg 10,5 kg

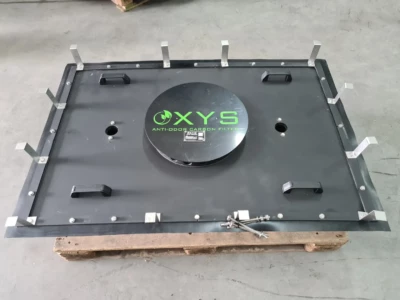

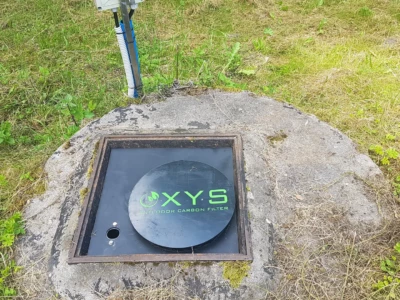

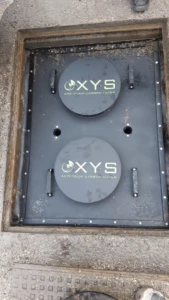

Square Under Manhole Filters

separator
OXYS K600 Dimensions of the mounting hole:
600×600 mm		 Length of the filtration chamber:
340 mm		 Weight of the filtering medium:
10,5 kg
OXYS K800 Dimensions of the mounting hole:
800×800 mm		 Length of the filtration chamber:
340 mm		 Weight of the filtering medium:
10,5 kg
OXYS K1000 Dimensions of the mounting hole:
1000 mm		 Length of the filtration chamber:
340 mm		 Weight of the filtering medium:
10,5 kg
filtr powłazowy kwadratowy
Parametr OXYS K600 OXYS K800 OXYS K1000
Dimensions of the mounting hole 600×600 mm 800×800 mm 1000×1000 mm
Length of the filtration chamber 340 mm 340 mm 340 mm
Weight of the filtering medium 10,5 kg 10,5 kg 10,5 kg

Other sizes of sub-manhole filters are also available:

  • 1200×800 mm
  • 1000×800 mm
  • 1000×600 mm
  • Others as per customer requirements

Portfolio

separator

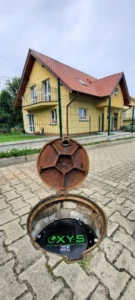

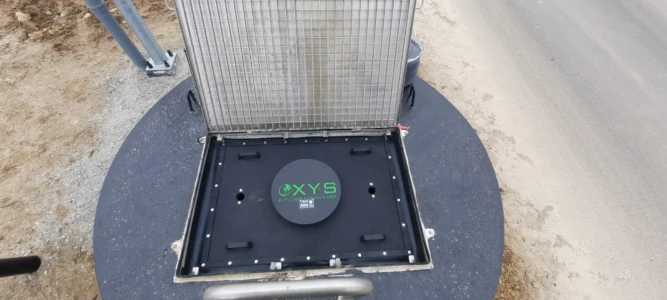

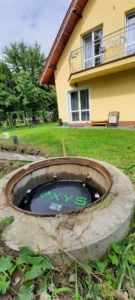

We invite you to explore our completed projects of under manhole anti odour filters.
