CHIMNEY ANTI ODOUR FILTERS

Air purification from odorous substances in pumping stations and sewage pumping stations.

Filtr kominowy OXYS
Home page 9 Offer 9 Chimney Anti Odour Filters

In the context of sewage systems, our chimney anti odour filters are the ideal solution for combating unpleasant odours in sewage pumping stations and wastewater pumping stations. Certified and independent studies confirm that the effectiveness of our filters exceeds 97%.

Thanks to carefully selected filtering media, we eliminate not only hydrogen sulfide but also ammonia, mercaptans, and other volatile organic compounds. The air purification process is effective, and the purified air is safely released into the atmosphere. Our filters not only protect against odour compounds but are also environmentally friendly.

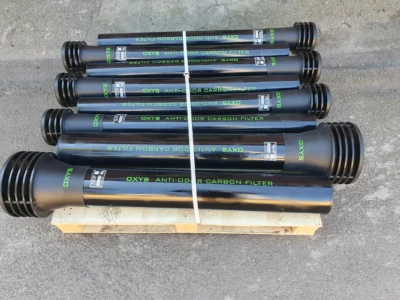

HDPE and SS Chimney Filters

separator

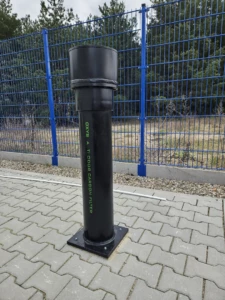

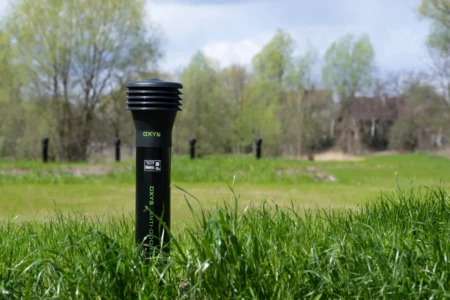

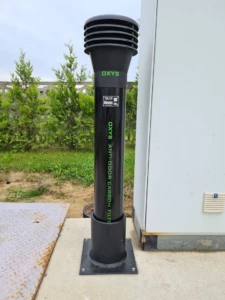

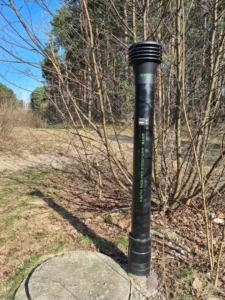

The anti odour filter is directly installed in the ventilation opening (the outer diameter of the filter is adapted to the tubular sealed passage, sleeve, PVC cup, or four-flange gasket) of sewage pumping stations, septic tanks, reservoirs, or by using an integrated filter base (direct installation to the concrete cover).

A well-constructed body and a rigid structure ensure a stable placement of the filter.

filtr_kominowy_KO

Parameters:

Parameter OXYS 110 OXYS 160 OXYS 200 OXYS 250
Filter diameter 110 mm 160 mm 200 mm 250 mm
Length of the filtration chamber 1000 mm 1000 mm 1000 mm 1000 mm
Weight of the filtering medium 4,4 kg 8,8 kg 14,5 kg 18,5 kg

In the case of atypical ventilation opening diameters, OXYS can provide connecting elements tailored to the customer’s needs.

OXYS 110 Filter diameter​:
110 mm		 Length of the filtration chamber:
1000 mm		 Weight of the filtering medium
4,4 kg
OXYS 160 Filter diameter:
160 mm		 Length of the filtration chamber:
1000 mm		 Weight of the filtering medium
8,8 kg
OXYS 200 Filter diameter:
200 mm		 Length of the filtration chamber:
1000 mm		 Weight of the filtering medium
14,5 kg
OXYS 250 Filter diameter:
250 mm		 Length of the filtration chamber:
1000 mm		 Weight of the filtering medium
18,5 kg

Our chimney filters are made of the following materials:

  • HDPE
  • Stainless steel 1.4301
  • Acid-resistant steel 1.4401 / 1.4404

Internal Chimney Filters

separator

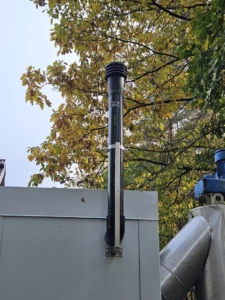

The internal chimney anti odour filter is directly installed in the existing ventilation chimney of sewage pumping stations. Its outer diameter is directly adapted to the inner diameter of the existing ventilation chimney, allowing it to fit inside. The filter is mounted on the head of the chimney using a special ring. Installation is exceptionally easy and does not require dismantling of existing ventilation chimneys.

OXYS_W90_inline
filtr kominowy wewnętrzny OXYS

Dimensions of OXYS internal chimney filters:

Parametr OXYS W90 OXYS W140
Filter diameter 90 mm 140 mm
Length of the filtration chamber 1000 mm 1000 mm
Diameter of the ventilation chimney for filter installation 100-110 mm 150-160 mm
Weight of the filtering medium 2,2 kg 6,2 kg

In the case of atypical ventilation opening diameters, OXYS can provide connecting elements tailored to the customer’s needs.

Dimensions of OXYS internal chimney filters:

OXYS W90 Filter diameter:
90 mm		 Length of the filtration chamber:
1000 mm		 Diameter of the ventilation chimney for filter installation Weight of the filtering medium:
2,2 kg
OXYS W140 Filter diameter:
140 mm		 Length of the filtration chamber:
1000 mm		 Diameter of the ventilation chimney for filter installation:
150-160 mm		 Weight of the filtering medium:
6,2 kg

In the case of atypical ventilation opening diameters, OXYS can provide connecting elements tailored to the customer’s needs.

Solar Chimney Filters

separator

The solar chimney anti odour filter is directly installed in the ventilation opening (the outer diameter of the filter is adapted to the tubular sealed passage, sleeve, PVC cup, or four-flange gasket) of sewage pumping stations, septic tanks, reservoirs, or by using an integrated filter base (direct installation to the concrete cover).

The filter is equipped with a solar fan made of stainless steel, which improves the airflow through the filtration bed.

Filtr kominowy solarny
filtr_kominowy_solarny

Dimensions of Solar Chimney Filters:

Parametr OXYS 110 OXYS 160 OXYS 200 OXYS 250
Filter diameter 110 mm 160 mm 200 mm 250 mm
Length of the filtration chamber 1000 mm 1000 mm 1000 mm 1000 mm
Weight of the filtering medium 4,4 kg 8,8 kg 14,5 kg 18,5 kg

In the case of atypical ventilation opening diameters, OXYS can provide connecting elements tailored to the customer’s needs.

Dimensions of Solar Chimney Filters:

OXYS 110 Filter diameter:
110 mm		 Length of the filtration chamber:
1000 mm		 Weight of the filtering medium:
4,4 kg
OXYS 160 Filter diameter:
160 mm		 Length of the filtration chamber:
1000 mm		 Weight of the filtering medium:
8,8 kg
OXYS 200 Filter diameter:
200 mm		 Length of the filtration chamber:
1000 mm		 Weight of the filtering medium:
14,5 kg
OXYS 250 Filter diameter:
250 mm		 Length of the filtration chamber:
1000 mm		 Weight of the filtering medium:
18,5 kg

In the case of atypical ventilation opening diameters, OXYS can provide connecting elements tailored to the customer’s needs.

Portfolio

separator

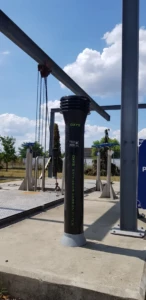

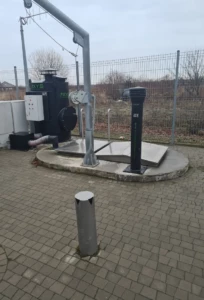

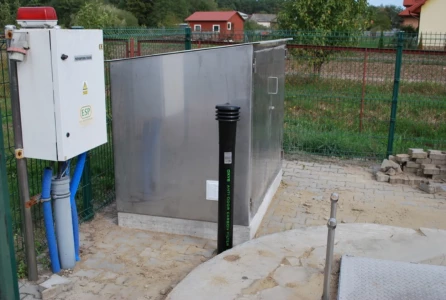

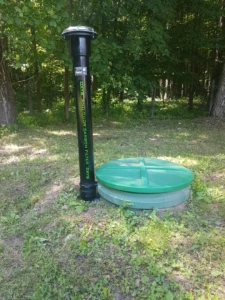

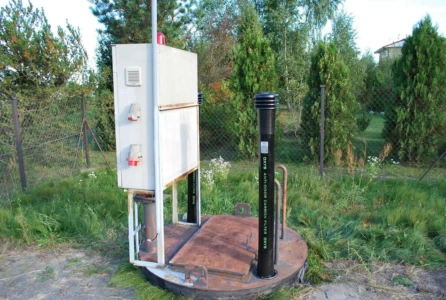

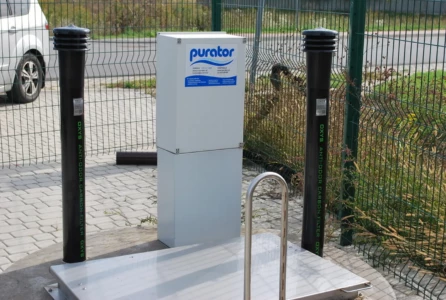

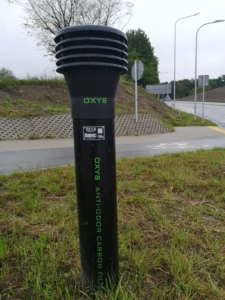

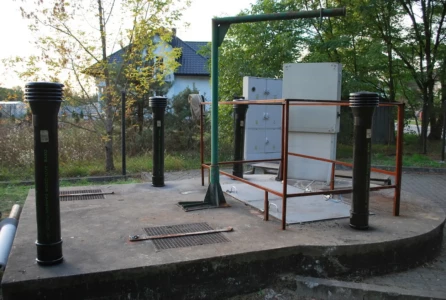

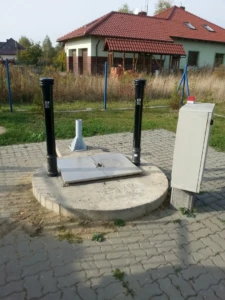

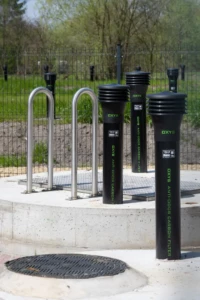

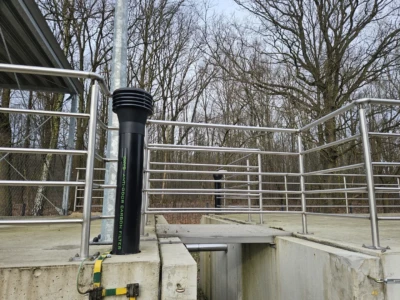

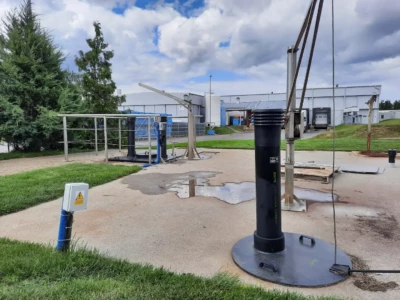

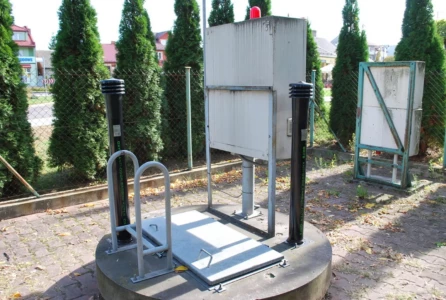

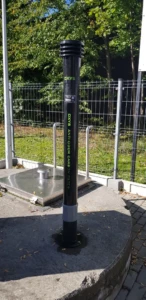

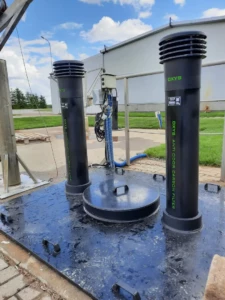

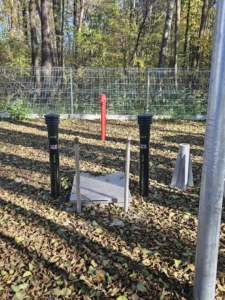

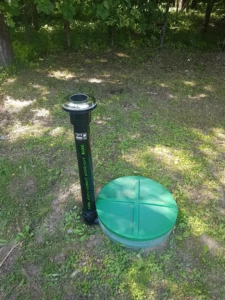

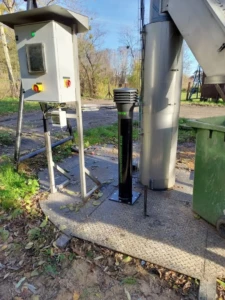

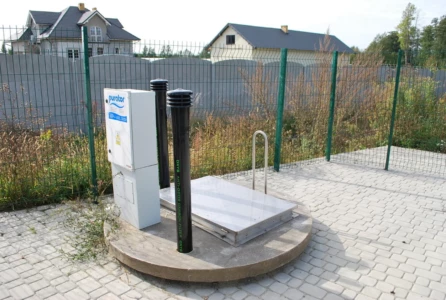

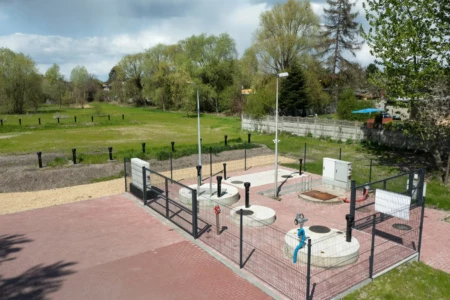

We invite you to explore our completed projects of chimney anti odour filters.
